Support for 8^th Generation Intel^® Core™ i7/Intel^® Core™ i5 /Intel^® Core™ i3 /Intel^® Pentium^® /Intel^® Celeron^® in the LGA1151 package

L3 cache varies with CPU

Chipset

Core Clock

CUDA® Cores

Memory Clock

Memory

- 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory- Dual channel memory architecture

 - Support for DDR4 2666/2400/2133 MHz memory modules

- Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

 - Support for Extreme Memory Profile (XMP) memory modules

* To support 2666 MHz or XMP memory, you must install an 8^th Generation Intel^® Core™ i7/i5 processor.

Card đồ họa thích hợp

- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz

- 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz

 * Support for HDMI 1.4 version and HDCP 2.2.Maximum shared memory of 1 GB

Âm thanh

- Realtek^® ALC887 codec

- High Definition Audio

- 2/4/5.1/7.1-channel

* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

Lan

Khe cắm mở rộng

- 1 x PCI Express x16 slot, running at x16

(The PCIEX16 slot conforms to PCI Express 3.0 standard.)

- 2 x PCI Express x1 slots

(The PCI Express x1 slots conform to PCI Express 2.0 standard.)

- 4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

- 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

Kết nối I/O bên trong

- 1 x 24-pin ATX main power connector

- 1 x 4-pin ATX 12V power connector

- 4 x SATA 6Gb/s connectors

- 1 x CPU fan header

- 1 x system fan header

- 1 x front panel header

- 1 x front panel audio header

- 1 x USB 3.1 Gen 1 header

- 1 x USB 2.0/1.1 headers

- 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)

- 1 x Clear CMOS jumper

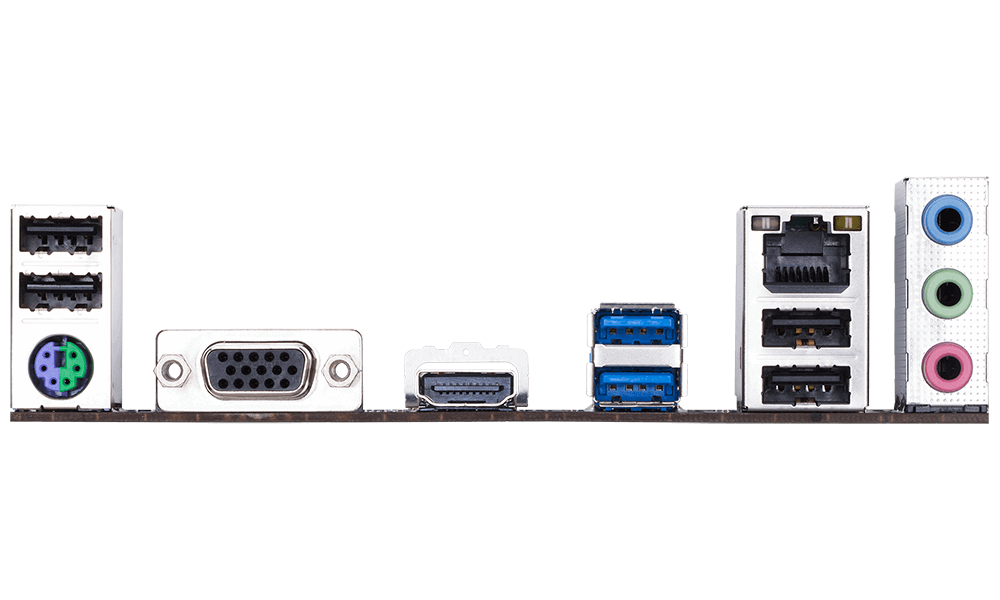

- 1 x PS/2 keyboard/mouse port

- 1 x D-Sub port

- 1 x HDMI port

- 2 x USB 3.1 Gen 1 ports

- 4 x USB 2.0/1.1 ports

- 1 x RJ-45 port

- 3 x audio jacks
